Performance Test and Certification of UAV at Home and abroad

Now folk used for photography, fire fighting, agricultural, often used in the UAV standard called "civil multi-rotor UAV", the country now for the "civil multi-rotor UAV system test method", a complete set of evaluation of the performance of UAV.

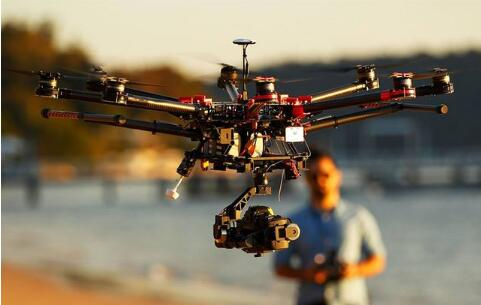

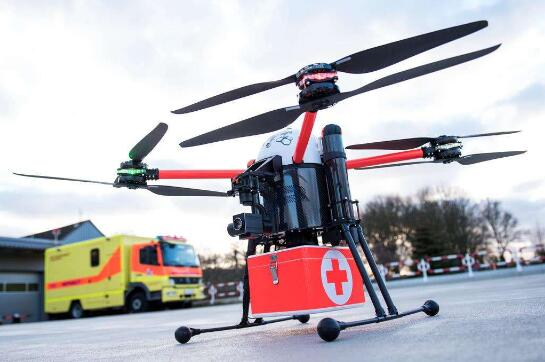

Multi-rotor UAV is a kind of UAV with three or more rotors supported by air reaction and can take off and land vertically and hover freely.

1. UAV performance test

The performance test of UAV is limited to the site, space, etc., and it is often troublesome to test. Now Deeplight can be used for customers to carry out the following UAV performance test according to the national standard GB/T 38058-2019. The performance test is limited to the UAV with a maximum take-off mass of less than 150kg.

(1) Maximum take-off mass test of civil multi-rotor UAV

In the test, the mission load is not loaded, and the corresponding counterweight is mounted to make the total mass reach the designed maximum take-off mass nominal value.

(2) Test of the maximum operating radius of civil multi-rotor UAV

Mount the prescribed task counterweight, control the UAV to take off vertically to the typical operating height, consume 10% of the full power, and according to the formula, this test will be carried out three times.

(3) Maximum flat flight speed test of civil multi-rotor UAV

Control the UAV to take off vertically to the specified operating altitude, and until the horizontal flight speed is within the stable range of (10.05s) Vhm for 5 seconds, the test is carried out four times, two times each, and the average value is taken.

(4) Track accuracy of the civil multi-rotor UAV

The UAV should receive no less than 8 navigation satellite signals, load the full counterweight, fly in accordance with the mission, and compare the collected position data with the preset track.

(5) High-temperature condition performance test of civil multi-rotor UAV

It is divided into two tests: high temperature storage and high temperature working.

(6) Low-temperature condition performance test of civil multi-rotor UAV

It is divided into two tests, cryogenic storage and cryogenic work.

(7) Performance test of wet and heat conditions of civil multi-rotor UAV

Hot and humid test shall be carried out in accordance with the 6167.4-2014 - HB.

(8) Radiation launch test of civil multi-rotor UAV

The test frequency band is at 30 MHz ~ 6 GHz, and the test is conducted at 3M, 10M, and 30M test distances.

(9) Radio frequency electromagnetic field radiation immunity test of civil multi-rotor UAV

The test is carried out in the anechoic chamber and is arranged according to GB/T 17626.3.

Deeplight can not only complete the UAV performance test, but also carry out the UAV test and certification at home and abroad

2. UAV certification at home and abroad

(1) Domestic UAV certification

UAV is a wireless product, which needs to apply for domestic mandatory certification-wireless model approval SRRC certification. If you add 2G3G4G5G and other functions, you also need to apply for CTA certification.

(2) Foreign certification of UAV

A) The United States needs to apply for FCC ID certification, with lithium batteries need to apply for DOEBC and other energy efficiency certification, sales in California need to apply for California 65, and safety regulations have UL, NRTL and other certification.

B) The Japanese market needs to apply for telec certification. If you add 2G3G4G5G and other functions, you also need to apply for jet certification of Japan Telecom Law.

C)There is more access to the EU market, with common CE RED, ROHS, REACH and other certifications.

3. Other tests of the drones

(1) If the UAV has GPS Beidou satellite positioning and navigation functions, it can also carry out special tests of satellite positioning and navigation, such as first capture time, receiver sensitivity, lock loss capture time, suppression and transmission self-interference, positioning accuracy, positioning speed, location report, communication query, and launch frequency.

(2) UAV will produce sound during take-off, flight and landing, and acoustic testing can be carried out. It is common to test product noise, product bottom noise, noise distribution, sound pressure level, sound power level, sound quality and noise source analysis.

(3) Testing and certification of agricultural plant protection UAV subsidy project, providing UAV agricultural machinery subsidy inspection services, assisting local UAV manufacturers to obtain UAV test reports, and successfully making UAV manufacturers into the subsidy catalogue of Guangdong, Jiangxi, Heilongjiang, Chongqing, Anhui, Zhejiang, Fujian and other places.

Deeplight can help customers to complete a set of UAV test certification, from performance testing to acoustics, navigation performance testing, and can complete a set of compulsory certification at home and abroad. Welcome customers to consult. This is the original article of this website. For reprinting,it is needed to explain where it comes from.
